Quick Dies Change Hydraulic Crimp Hose Fittings Caterpillar Hydraulic Hose Press For Sale Used Hose Crimping Machine

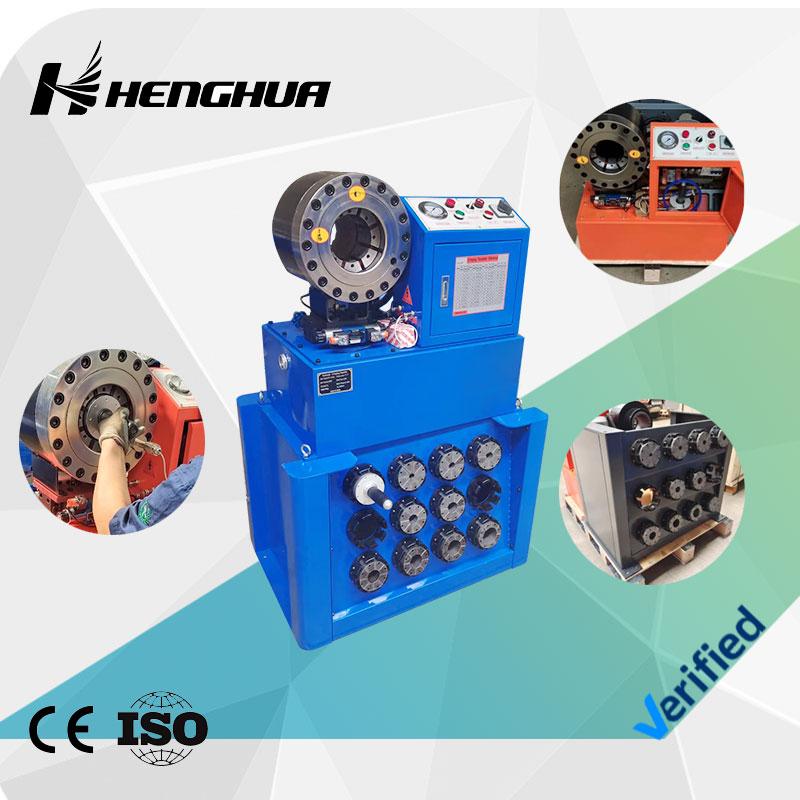

Model DX68 hose crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.

This machine features small and portable appearance, big force, low noise and easy to oper- ate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.

Buckling range: Φ4mm-Φ51mm(2 layers steel wire rubber hose) Max. buckling force: 449T

Scale accuracy: 0.02mm Rated pressure: 31.5 MPa

Oil pump displacement: 5ml/rad (380V); 2.5ml/rad (220V) Overall dimensions: 670(L)×490(W)×780(H)mm

Hose crimping machine
Model	DX68	DX76	DX102	DX150
Crimping range	6-51mm(1/4″ ~2″)	6~76mm ( 1/4~3″ )	6~102mm ( 1/4~4″ )	6-150mm(1/4~6″)
Max crimping Force	449T	500T	1400T	2500T
Rated Pressure	31.5MPa	50Mpa	31.5Mpa	31.5Mpa
Weight	250kg	300kg	520kg	900kg
Mold Quantity	10 sets	13Sets	16Sets	17Sets
Power	3KW/4KW	4KW	4KW/5.5KW/7.5KW	4KW/5.5KW/7.5KW
Voltage	220V/380V	240V / 380V	380V or customized	380V or customized
Scale accuracy	0.02mm	0.02mm	0.01mm	0.01mm
Overall dimensions	670*490*780mm	730*470*930mm	900*790*1070mm	1030*630* 1160mm

Main Technical Feature

1.Efficient, fast pump
2. dies can be changed quickly by QC tool
3. Die set rack,space saving.
4. Precision control device,equipped with signal lamp
5. automatic&semi-auto&button& foot pedal control operated
6.The height of the machine is just right for standing operation

1.When buckling, make the joint to locate the mould center as much as possible, the joint is not buckled on the hex nut.

2.Prevent tool and other foreign matter from entering the locking head.

3.After the work is finished for each time, the eight-block mould base must be made to extend to the greatest extent, this can make the spring to be at extension status. If not, the spring will be damage.

4.When working, the hand should not stretch into the locking head.

5.The power supply must be switched off when maintenance is done.

Maintenance and Care

The hydraulic oil in the oil tank should be frequently checked, if oil amount is found to be insuf- ficient, the oil shall be timely supplemented. If the oil liquid is polluted, it shall be filtered or replaced.

The locking head shall keep internal cleanliness. Avoid the foreign matters during processing to enter into the locking head oil cylinder via the mould to affect the normal use. Wipe out the foreign matters, which are brought by the mould body in time when buckling the joint.

Frequently fill suitable grease into the mould body for lubrication.

Promise

We will provide a guarantee to keep the machine in good repair within 12 months from the day when the machine is purchased. All fitting troubles will be free of charge repaired (or replaced if necessary) during the guarantee period. The damage resulted from improper use o accident damage does not belong to free of charge repair range.

Hydraulic crimp hose fittings are fittings that are used to connect hoses in a hydraulic system. They are typically made of a durable material such as steel or brass and are designed to withstand high pressure. The fittings are crimped, or compressed, onto the hose to create a secure connection. This type of fitting is commonly used in industrial and mobile equipment applications, such as construction machinery and trucks. They are often preferred over other types of fittings because they are easy to install, provide a reliable seal, and are resistant to vibration and pressure surges.

There are many manufacturers of hydraulic crimp hose fittings. Some of the top manufacturers include Parker Hannifin, Eaton, Gates, Weatherhead, and Aeroquip. These companies are known for producing high-quality fittings that are designed to meet the specific needs of different industries and applications. They offer a wide range of fittings in different sizes, materials, and configurations to accommodate various types of hoses and systems. Additionally, many of these manufacturers also provide tools and equipment for crimping and installing the fittings. It’s worth noting that there are also many regional and local manufacturers that produce hydraulic crimp hose fittings as well.

HengHua is a professional manufacturer, supplier of hydraulic crimp hose fittings, we provide hydraulic crimp hose fittings OEM & ODM wholesale, hydraulic crimp hose fittings price and more questions, please contact us and follow our Facebook:https://www.facebook.com/Henghuahose and Youtube:https://www.youtube.com/@HENGHUA-let-crimp-easier , We will respond in a timely manner, we are not the lowest price of DX68 Hydraulic Hose press machine, but we will provide you with better service.

We are Chine Top Verified Manufacturer of rubber hose making machinery, If you follow this industry, you can always see our products. we have better quality, technology and competitive prices in the similar product. If you are interested in our product, please feel free to contact us. Thanks!
