Original Factory Diy Hydraulic Hose Crimper Hose Press Hydraulic Hose Crimping Near Me For Sale

Description

Brief Introduction

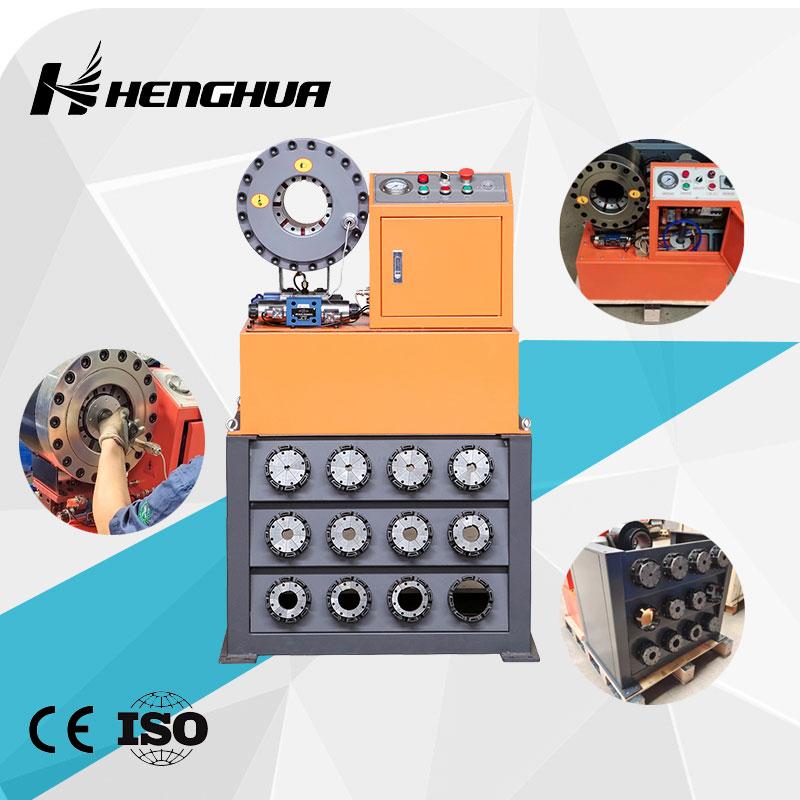

Model DX68 hose crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.

This machine features small and portable appearance, big force, low noise and easy to oper- ate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.

Main Technical Feature

Buckling range: Φ4mm-Φ51mm(2 layers steel wire rubber hose) Max. buckling force: 449T

Scale accuracy: 0.02mm Rated pressure: 31.5 MPa

Oil pump displacement: 5ml/rad (380V); 2.5ml/rad (220V) Overall dimensions: 670(L)×490(W)×780(H)mm

Hose crimping machine
Model	DX68	DX76	DX102	DX150
Crimping range	6-51mm(1/4″ ~2″)	6~76mm ( 1/4~3″ )	6~102mm ( 1/4~4″ )	6-150mm(1/4~6″)
Max crimping Force	449T	500T	1400T	2500T
Rated Pressure	31.5MPa	50Mpa	31.5Mpa	31.5Mpa
Weight	250kg	300kg	520kg	900kg
Mold Quantity	10 sets	13Sets	16Sets	17Sets
Power	3KW/4KW	4KW	4KW/5.5KW/7.5KW	4KW/5.5KW/7.5KW
Voltage	220V/380V	240V / 380V	380V or customized	380V or customized
Scale accuracy	0.02mm	0.02mm	0.01mm	0.01mm
Overall dimensions	670490780mm	730470930mm	9007901070mm	1030630 1160mm

Main Technical Feature

1.Efficient, fast pump
2. dies can be changed quickly by QC tool
3. Die set rack,space saving.
4. Precision control device,equipped with signal lamp
5. automatic&semi-auto&button& foot pedal control operated
6.The height of the machine is just right for standing operation

Notices

1.When buckling, make the joint to locate the mould center as much as possible, the joint is not buckled on the hex nut.

2.Prevent tool and other foreign matter from entering the locking head.

3.After the work is finished for each time, the eight-block mould base must be made to extend to the greatest extent, this can make the spring to be at extension status. If not, the spring will be damage.

4.When working, the hand should not stretch into the locking head.

5.The power supply must be switched off when maintenance is done.

Maintenance and Care

Maintenance

The hydraulic oil in the oil tank should be frequently checked, if oil amount is found to be insuf- ficient, the oil shall be timely supplemented. If the oil liquid is polluted, it shall be filtered or replaced.

The locking head shall keep internal cleanliness. Avoid the foreign matters during processing to enter into the locking head oil cylinder via the mould to affect the normal use. Wipe out the foreign matters, which are brought by the mould body in time when buckling the joint.

Frequently fill suitable grease into the mould body for lubrication.

Promise

We will provide a guarantee to keep the machine in good repair within 12 months from the day when the machine is purchased. All fitting troubles will be free of charge repaired (or replaced if necessary) during the guarantee period. The damage resulted from improper use o accident damage does not belong to free of charge repair range.

About hose press for sale

If you are looking for a hose press for sale, I would suggest checking with online marketplaces or hardware stores in your local area. You may also find information on websites of manufacturers who make hose press machines.

Before making a purchase, it’s important to do some research to ensure that the hose press you are buying is appropriate for the types of hoses you need to work with and meets your specific requirements. You should also consider factors such as the quality, durability, and safety features of the machine, as well as its price and warranty.

About hose press manufacturer for sale

To find a hose press manufacturer for sale, you could start by searching online for manufacturers in your area or in countries known for producing high-quality industrial equipment. You could also consult industry publications or trade directories for listings of manufacturers that offer hose press machines.

Before choosing a manufacturer, it’s important to consider factors such as the manufacturer’s reputation, the quality of their products, and their customer service and support. You should also consider factors such as the warranty and after-sales support offered by the manufacturer.

Once you have a shortlist of potential manufacturers, you should contact them to discuss your specific requirements and to obtain quotes for their products. This will help you to compare different manufacturers and choose the one that best meets your needs and budget.

HengHua is a professional manufacturer, supplier of hose press machine, we provide hose press for sale OEM & ODM wholesale, hose press for sale price and more questions, please contact us and follow our Facebook:https://www.facebook.com/Henghuahose and Youtube:https://www.youtube.com/@HENGHUA-let-crimp-easier , We will respond in a timely manner, we are not the lowest price of DX68 Hydraulic Hose press machine, but we will provide you with better service.

We are Chine Top Verified Manufacturer of rubber hose making machinery, If you follow this industry, you can always see our products. we have better quality, technology and competitive prices in the similar product. If you are interested in our product, please feel free to contact us. Thanks!

Additional information

Model	DX68
Crimping range	6-51mm(1/4" ~2")
Max crimping Force	449T
Rated Pressure	31.5MPa
Weight	250kg
Mold Quantity	10 sets
Power	3KW/4KW
Voltage	220V/380V
Scale accuracy	0.02mm
Overall dimensions	670490780mm
