Description

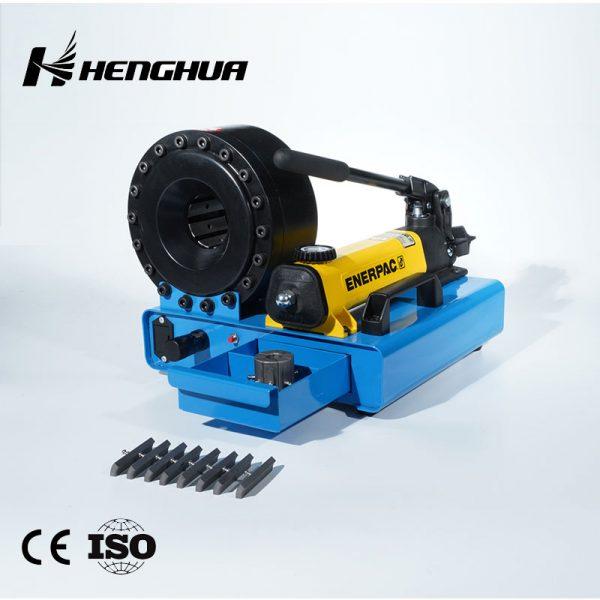

HM51S manual hydraulic hose crimping machine is one of the best-selling models of our company. It is compact and beautiful, easy to move. The manual pump operation of buckle pressure mode can flow operation, which is suitable for use without power supply. In order to prolong the service life of the machine, the dedicated die steel material and unique heat treatment process are adopted. We promise to focus on doing high-quality products, all products have passed CE,ISO001 quality system certification. Each equipment has passed a number of tests before leaving the factory, the original factory quality, after-sales worry free!
Feature:
1.Nice appearance,Super light weight with stable performance, Low noise and easy to operate.
2.Imported brand-name oil pump with excellent accessories
3.The light is on when crimped to the pre-size
4.The hardness of the die base and die sets is high, to ensure the long service life.
5.Excellent quality and competitive price.
Promise
We will provide a guarantee to keep the machine in good repair within 12 months from the day when the machine is purchased. All fitting troubles will be free of charge repaired (or replaced if necessary) during the guarantee period. The damage resulted from improper use o accident damage does not belong to free of charge repair range.
| Type | HS51S |
| Crimping range | 6-45mm | 1/4″-3/4″ (4 layers) |
| Max opening | 40mm |
| Operation | Hand operated |
| Power | Manual pump |
| Crimping force | 955KN |
| Protect grade | Ip54 |
| Die sets (standard) | 6-10 sets |
| Dimension (L*W*H) | 331*401*271mm |
| Weight | 35KG |
| Dies No.# | Crimping range (mm) | Length (mm) |
| 6* | 6.0 – 8.0 | 55 |
| 8* | 8.0 – 10.0 | 55 |
| 10* | 10.0 – 12.0 | 55 |
| 12* | 12.0 – 14.0 | 55 |
| 14 | 14.0 – 16.0 | 55 |
| 16 | 16.0 – 19.0 | 55 |
| 19 | 19.0 – 22.0 | 55 |
| 23 | 23.0 – 27.0 | 70 |
| 27 | 27.0 – 31.0 | 70 |
| 31 | 31.0 – 34.0 | 70 |
