Factory Direct Sales Hose Press Tool Hose Crimping Machine Price Hydraulic Hose Crimper Dies

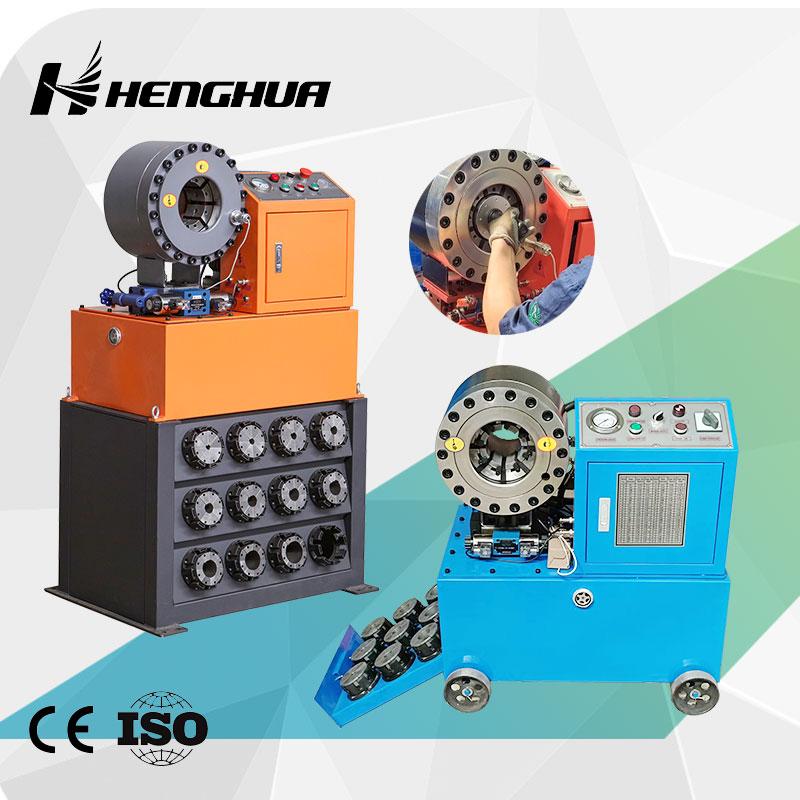

Model DX68 hose crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.

This machine features small and portable appearance, big force, low noise and easy to oper- ate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.

Buckling range: Φ4mm-Φ51mm(2 layers steel wire rubber hose) Max. buckling force: 449T

Scale accuracy: 0.02mm Rated pressure: 31.5 MPa

Oil pump displacement: 5ml/rad (380V); 2.5ml/rad (220V) Overall dimensions: 670(L)×490(W)×780(H)mm

Hose crimping machine
Model	DX68	DX76	DX102	DX150
Crimping range	6-51mm(1/4″ ~2″)	6~76mm ( 1/4~3″ )	6~102mm ( 1/4~4″ )	6-150mm(1/4~6″)
Max crimping Force	449T	500T	1400T	2500T
Rated Pressure	31.5MPa	50Mpa	31.5Mpa	31.5Mpa
Weight	250kg	300kg	520kg	900kg
Mold Quantity	10 sets	13Sets	16Sets	17Sets
Power	3KW/4KW	4KW	4KW/5.5KW/7.5KW	4KW/5.5KW/7.5KW
Voltage	220V/380V	240V / 380V	380V or customized	380V or customized
Scale accuracy	0.02mm	0.02mm	0.01mm	0.01mm
Overall dimensions	670*490*780mm	730*470*930mm	900*790*1070mm	1030*630* 1160mm

Main Technical Feature

1.Efficient, fast pump
2. dies can be changed quickly by QC tool
3. Die set rack,space saving.
4. Precision control device,equipped with signal lamp
5. automatic&semi-auto&button& foot pedal control operated
6.The height of the machine is just right for standing operation

1.When buckling, make the joint to locate the mould center as much as possible, the joint is not buckled on the hex nut.

2.Prevent tool and other foreign matter from entering the locking head.

3.After the work is finished for each time, the eight-block mould base must be made to extend to the greatest extent, this can make the spring to be at extension status. If not, the spring will be damage.

4.When working, the hand should not stretch into the locking head.

5.The power supply must be switched off when maintenance is done.

Maintenance and Care

The hydraulic oil in the oil tank should be frequently checked, if oil amount is found to be insuf- ficient, the oil shall be timely supplemented. If the oil liquid is polluted, it shall be filtered or replaced.

The locking head shall keep internal cleanliness. Avoid the foreign matters during processing to enter into the locking head oil cylinder via the mould to affect the normal use. Wipe out the foreign matters, which are brought by the mould body in time when buckling the joint.

Frequently fill suitable grease into the mould body for lubrication.

Promise

We will provide a guarantee to keep the machine in good repair within 12 months from the day when the machine is purchased. All fitting troubles will be free of charge repaired (or replaced if necessary) during the guarantee period. The damage resulted from improper use o accident damage does not belong to free of charge repair range.

Hydraulic hose crimper dies, also known as crimping dies or crimping jaws, are specialized components used in hydraulic hose crimping machines. They are designed to fit specific hose sizes and types, and create a secure connection between the hose and fitting.

Hydraulic hose crimper dies come in various shapes and sizes, depending on the hose size and type being crimped. They are typically made of hardened steel or other durable materials to withstand the high pressure and force needed to create a proper crimp.

When using a hydraulic hose crimping machine, it is essential to use the correct dies for the hose being crimped. Using the wrong size or type of dies can result in an improperly crimped hose, which could lead to leaks or other failures.

Proper maintenance of hydraulic hose crimper dies is also important to ensure their longevity and effectiveness. Regular cleaning, lubrication, and inspection for wear or damage can help prolong the life of the dies and ensure reliable and consistent crimping.

HengHua is a professional manufacturer, supplier of Hydraulic hose crimper dies for sale, we provide Hydraulic hose crimper dies for sale OEM & ODM wholesale, Hydraulic hose crimper dies for sale price and more questions, please contact us and follow our Facebook:https://www.facebook.com/Henghuahose and Youtube:https://www.youtube.com/@HENGHUA-let-crimp-easier , We will respond in a timely manner, we are not the lowest price of DX68 Hydraulic Hose press machine, but we will provide you with better service.

We are Chine Top Verified Manufacturer of rubber hose making machinery, If you follow this industry, you can always see our products. we have better quality, technology and competitive prices in the similar product. If you are interested in our product, please feel free to contact us. Thanks!
