China Manufactory Hydraulic Hose Press Machine Garden Hose Crimping Tool Hydraulic Hose Pipe Crimping Machine Price For Sale

Description

Brief Introduction

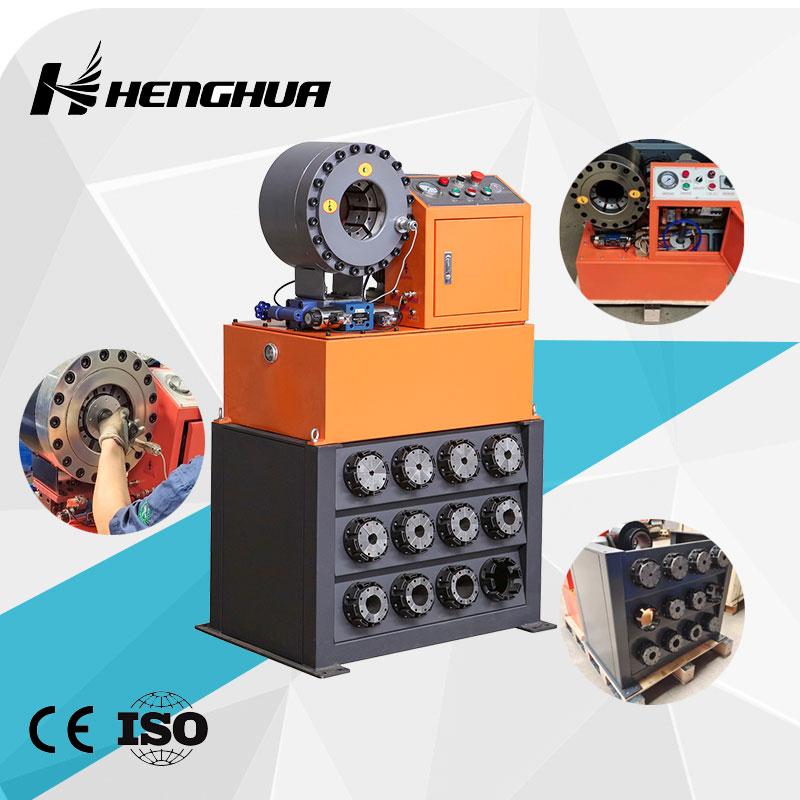

Model DX68 hose crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.

This machine features small and portable appearance, big force, low noise and easy to oper- ate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.

Main Technical Feature

Buckling range: Φ4mm-Φ51mm(2 layers steel wire rubber hose) Max. buckling force: 449T

Scale accuracy: 0.02mm Rated pressure: 31.5 MPa

Oil pump displacement: 5ml/rad (380V); 2.5ml/rad (220V) Overall dimensions: 670(L)×490(W)×780(H)mm

Hose crimping machine
Model	DX68	DX76	DX102	DX150
Crimping range	6-51mm(1/4″ ~2″)	6~76mm ( 1/4~3″ )	6~102mm ( 1/4~4″ )	6-150mm(1/4~6″)
Max crimping Force	449T	500T	1400T	2500T
Rated Pressure	31.5MPa	50Mpa	31.5Mpa	31.5Mpa
Weight	250kg	300kg	520kg	900kg
Mold Quantity	10 sets	13Sets	16Sets	17Sets
Power	3KW/4KW	4KW	4KW/5.5KW/7.5KW	4KW/5.5KW/7.5KW
Voltage	220V/380V	240V / 380V	380V or customized	380V or customized
Scale accuracy	0.02mm	0.02mm	0.01mm	0.01mm
Overall dimensions	670490780mm	730470930mm	9007901070mm	1030630 1160mm

Main Technical Feature

1.Efficient, fast pump
2. dies can be changed quickly by QC tool
3. Die set rack,space saving.
4. Precision control device,equipped with signal lamp
5. automatic&semi-auto&button& foot pedal control operated
6.The height of the machine is just right for standing operation

Notices

1.When buckling, make the joint to locate the mould center as much as possible, the joint is not buckled on the hex nut.

2.Prevent tool and other foreign matter from entering the locking head.

3.After the work is finished for each time, the eight-block mould base must be made to extend to the greatest extent, this can make the spring to be at extension status. If not, the spring will be damage.

4.When working, the hand should not stretch into the locking head.

5.The power supply must be switched off when maintenance is done.

Maintenance and Care

Maintenance

The hydraulic oil in the oil tank should be frequently checked, if oil amount is found to be insuf- ficient, the oil shall be timely supplemented. If the oil liquid is polluted, it shall be filtered or replaced.

The locking head shall keep internal cleanliness. Avoid the foreign matters during processing to enter into the locking head oil cylinder via the mould to affect the normal use. Wipe out the foreign matters, which are brought by the mould body in time when buckling the joint.

Frequently fill suitable grease into the mould body for lubrication.

Promise

We will provide a guarantee to keep the machine in good repair within 12 months from the day when the machine is purchased. All fitting troubles will be free of charge repaired (or replaced if necessary) during the guarantee period. The damage resulted from improper use o accident damage does not belong to free of charge repair range.

About hydraulic hose pipe crimping machine price

The price of a hydraulic hose pipe crimping machine can vary depending on several factors, including the brand, model, specifications, and features of the machine. In general, a basic manual crimping machine can cost anywhere from a few hundred dollars to several thousand dollars, while a more advanced and automated machine can cost tens of thousands of dollars.

It’s important to note that the price of the machine is just one of the costs associated with crimping hydraulic hose pipes. Other costs to consider include the cost of the hose fittings, the cost of the hydraulic hose itself, and the cost of training and certification for the operator.

To get a more accurate idea of the price range for hydraulic hose pipe crimping machines, you can research various suppliers and manufacturers and compare their prices and features. You may also want to consider purchasing a used or refurbished machine, which may be available at a lower cost.

Hydraulic hose pipe crimping machine manufacturer

There are several manufacturers of hydraulic hose pipe crimping machines, both large and small, operating globally. Some of the most popular and well-known manufacturers include:

Finn-Power: This Finnish company is one of the world’s leading manufacturers of hydraulic crimping machines and other hydraulic equipment. They offer a wide range of crimping machines for various applications and industries.
Parker Hannifin: Parker is a global manufacturer of motion and control technologies, including hydraulic hose crimping machines. Their machines are designed to be versatile and easy to use, with a range of different sizes and capabilities.
UNIFLEX: UNIFLEX is a German company that specializes in the manufacturing of hydraulic crimping machines for a wide range of industries, from automotive to marine. They offer a variety of machines with different specifications and features.
Gates Corporation: Gates is an American company that specializes in the production of industrial and hydraulic hoses, as well as crimping machines. Their machines are designed to be durable and reliable, with a range of different options to suit different applications.
Techmaflex: Techmaflex is a French company that offers a wide range of hydraulic hose crimping machines, from manual to fully automated models. They focus on innovation and use advanced technologies to improve the performance and efficiency of their machines.

There are many other hydraulic hose pipe crimping machine manufacturers out there as well. It’s important to do your research and choose a manufacturer that offers a high-quality product with good customer service and support.

HengHua is a professional manufacturer, supplier of hydraulic hose pipe crimping machine, we provide hydraulic hose pipe crimping machine for sale OEM & ODM wholesale, hydraulic hose pipe crimping machine for sale price and more questions, please contact us and follow our Facebook:https://www.facebook.com/Henghuahose and Youtube:https://www.youtube.com/@HENGHUA-let-crimp-easier , We will respond in a timely manner, we are not the lowest price of DX68 Hydraulic Hose press machine, but we will provide you with better service.

We are Chine Top Verified Manufacturer of rubber hose making machinery, If you follow this industry, you can always see our products. we have better quality, technology and competitive prices in the similar product. If you are interested in our product, please feel free to contact us. Thanks!

Additional information

Model	DX68
Crimping range	6-51mm(1/4" ~2")
Max crimping Force	449T
Rated Pressure	31.5MPa
Weight	250kg
Mold Quantity	10 sets
Power	3KW/4KW
Voltage	220V/380V
Scale accuracy	0.02mm
Overall dimensions	670490780mm
